NinjaTrader 8 indicator, NinjaScriptHand-drawn trendlines are slow, subjective and easy to fool: you draw the line after the fact and then every close near it looks like a break. Apex Break PRO draws the line through consecutive confirmed pivots, waits for a close through it by an ATR margin, and asks four filters whether the break is worth a signal. On NinjaTrader 8, the volume filter reads real contract volume.
$77one payment, lifetime licence
Get the lifetime licence
A trendline is only as good as the two points it goes through, and by hand you pick them with hindsight. You see the swing, you draw the line, and from then on every candle that pokes through it looks like the breakout you were waiting for. Half of those pokes close back inside the line.
The fix is not a better eye. It is a rule: a pivot counts only after enough bars have closed on its right, a line exists only through two such pivots, and a break counts only when a bar closes beyond the line by more than a margin of the current volatility. Then ask whether the trend, the volume, the momentum and the strength of the move agree.
That is what this indicator does on every bar, on MNQ, ES, CL and every other instrument NinjaTrader charts, and it tells you how many of the filters agreed before you act.
The user guide is public: every parameter, the dashboard rows and the verification are in it. Read it before you pay.
One indicator on the chart, in the price panel, and the lines redraw themselves as the market makes new pivots.
Every confirmed pivot high extends a resistance line through the previous pivot high, every pivot low a support line. A pivot is confirmed only after the right-hand window of bars has closed, so a line never appears before the market has shown its shape.
A line stays solid while it is live and turns dashed on the bar that broke it, or once it is older than the extension limit. The oldest are dropped so the chart never fills up.
A close has to clear the line by a multiple of the current ATR before it counts. Wicks through the line and closes a tick beyond it are not breaks.
Close on the right side of the trend EMA, volume above a multiple of its average, RSI clear of the boundary, ADX above its threshold. Each one you enable adds a point; you set the minimum.
The label prints the banner, the close and the stars with the fraction, for example three of three. A cooldown stops a second signal of the same side printing right after the first.
Entry, a stop at a multiple of ATR or a percentage, and TP1, TP2, TP3 at your risk-reward ratios, drawn with the signal. The risk zone is shaded red, the reward zone green, and a reached target is ticked in the dashboard.
Buy, sell, any signal, resistance break, support break, TP1, TP2, TP3 and stop. They land in the Alerts Log with a sound, and by email through NinjaTrader's Mail share service, with JSON bodies if you want them.
Two columns in the corner you choose: the last signal with its stars, each enabled filter with its current value and a tick or cross, and the tracked trade's entry, stop and targets.
TrendEma, Signal (+1, -1, 0) and TradeDirection (+1 long, -1 short, 0 flat) are exposed to NinjaScript strategies and the Market Analyzer, so you can automate or scan on the same values the chart shows.

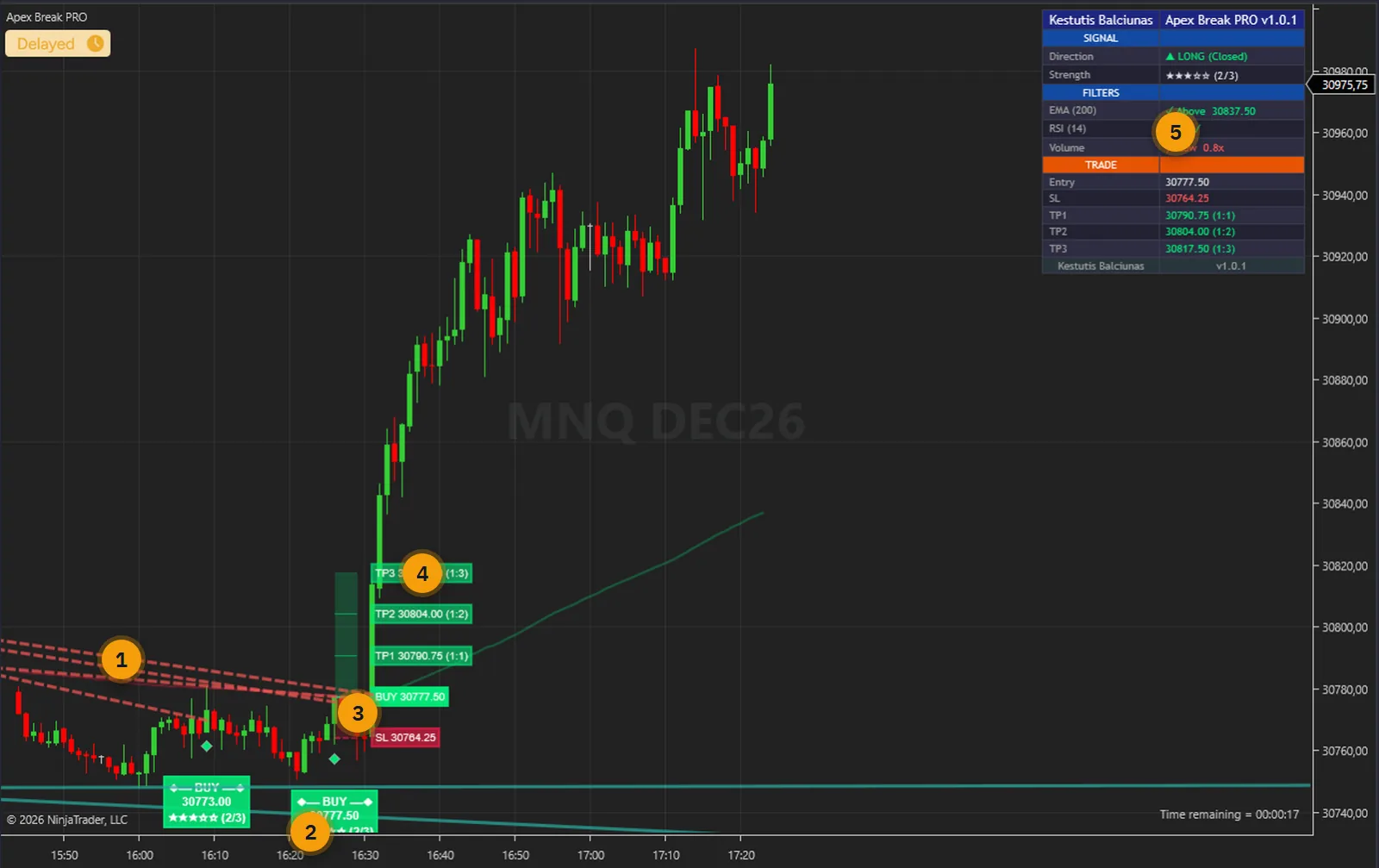

Every picture below is a NinjaTrader 8 capture with numbered notes added. Nothing on the charts is drawn by hand, and the dashboard sits in the chart margin so no signal is covered. Click any image to enlarge it.

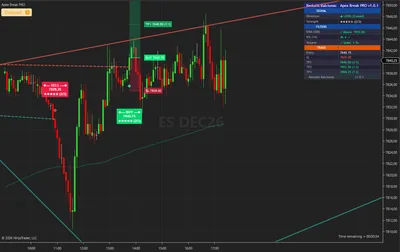

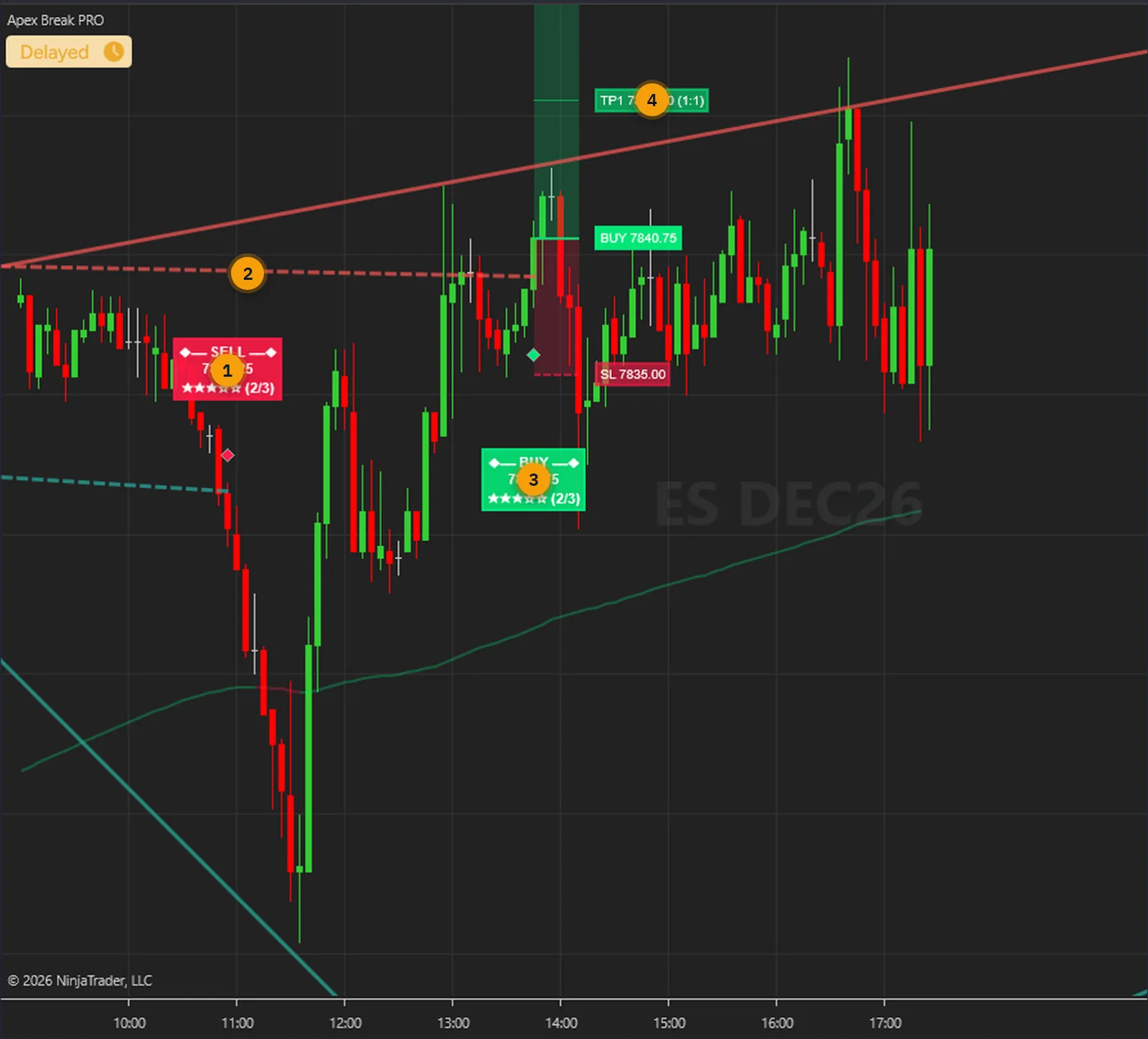

Two signals on one ES session. Each label carries the star rating and the fraction: how many of the enabled filters agreed with the break. Both had the EMA side and the RSI on their side while volume stayed low, so both print two of three, and the dashboard shows which filter was missing.
The rating is a count of agreement, not a probability of profit. What it gives you is a consistent reason to take the three-of-three breaks seriously and to treat the one-of-three breaks as noise, on every chart, without redrawing anything.

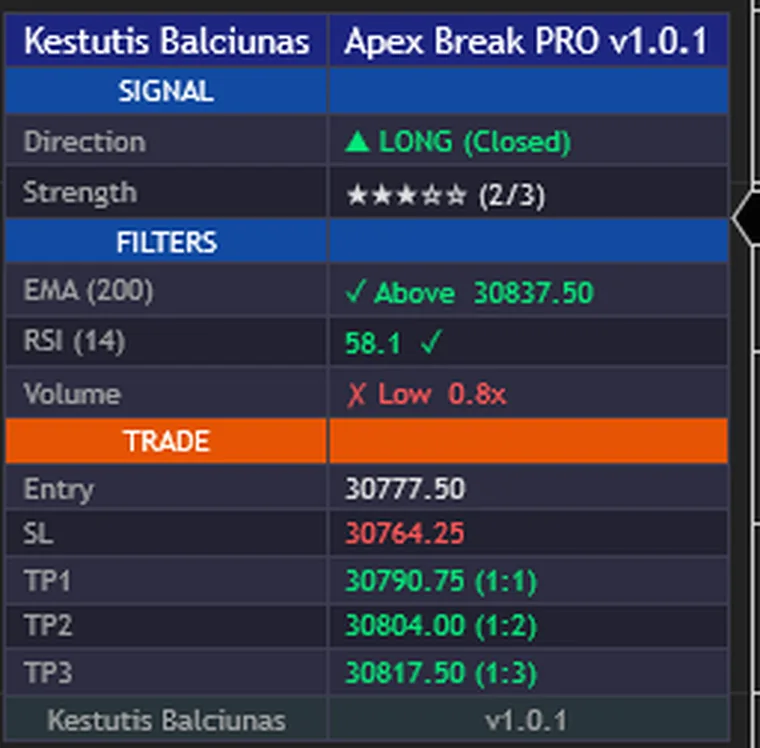

The SIGNAL rows hold the last signal's direction, tagged active or closed, and its star rating with the fraction. The FILTERS rows are live: for each enabled filter its current value and a tick or cross, using the same test the scoring uses, so you can see conditions change since the signal printed.
The TRADE rows hold the tracked trade's entry, stop and three targets, with a check mark on each one reached. A tick records that price traded through the level on the loaded history; there is no spread, commission or slippage in it, and it is not a filled order.

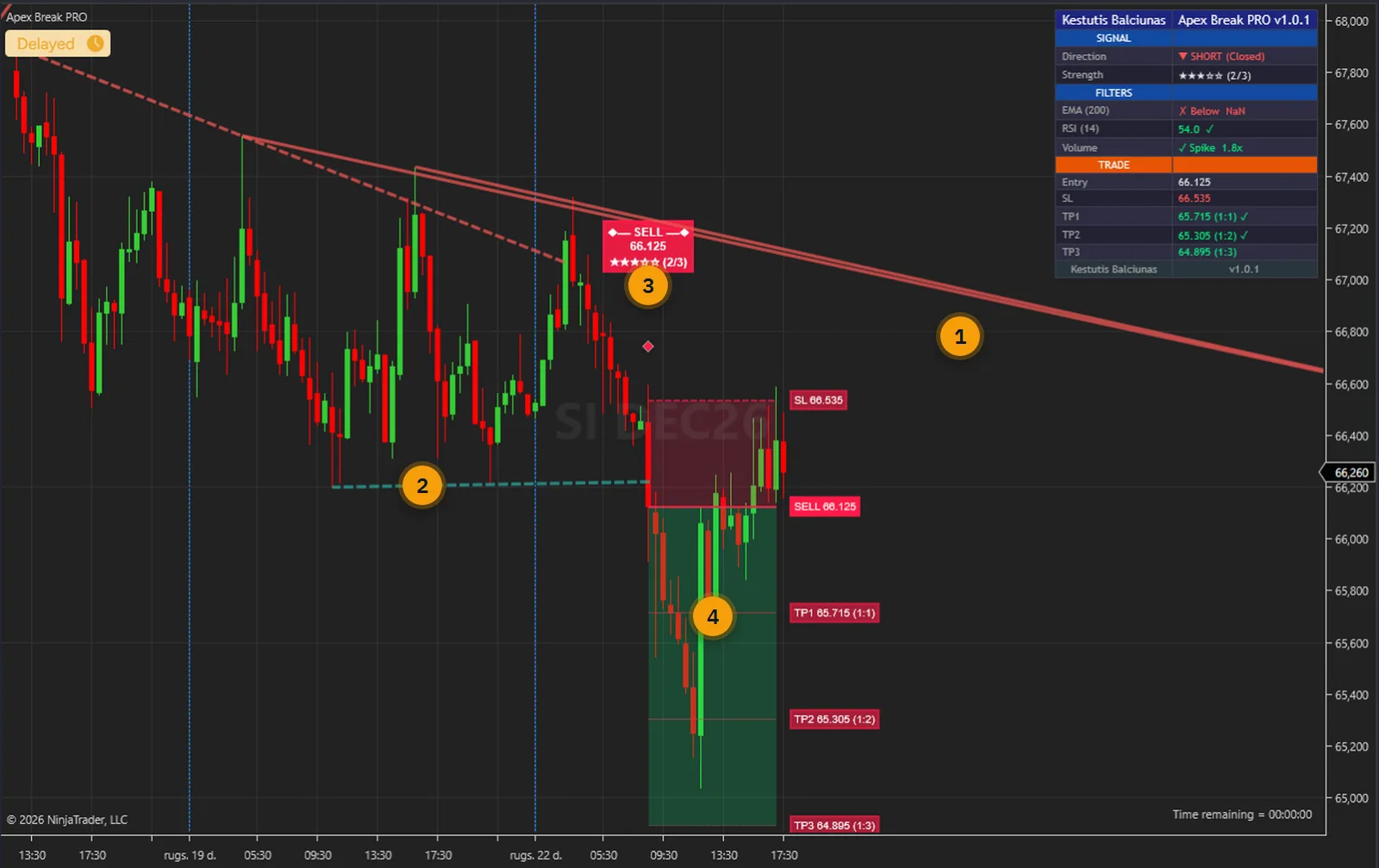

Every confirmed pivot high extends a resistance line through the previous pivot high, every pivot low a support line. A pivot counts only after its right-hand window of bars has closed, so a line never appears before the market has shown its shape, and it never moves once drawn.

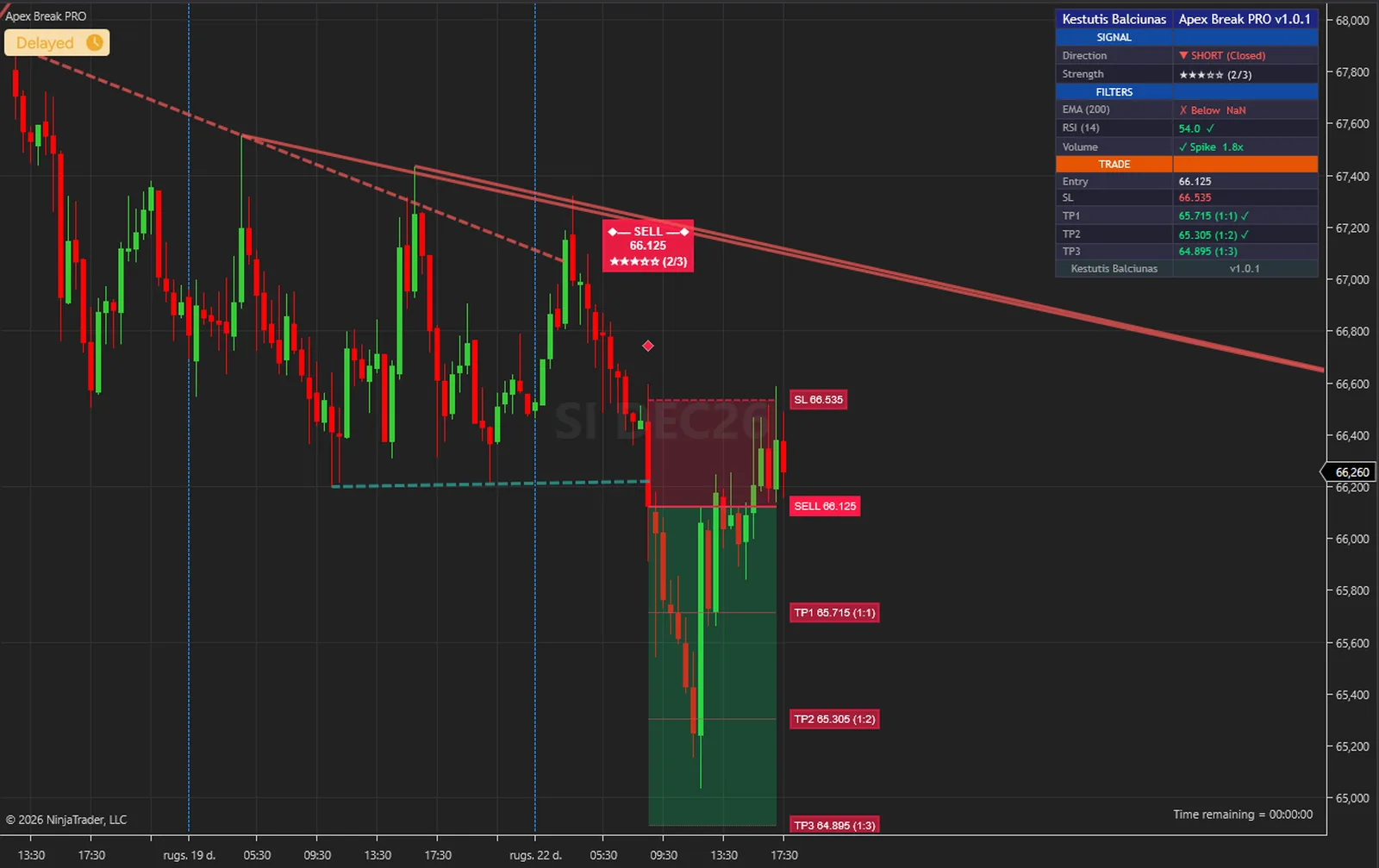

A line stays solid while it is live and turns dashed on the bar that closed through it, then stays for reference until the oldest are dropped. On this silver chart the descending resistance is still live while the flat support below it was broken by the SELL, whose reward zone runs down to the third target.

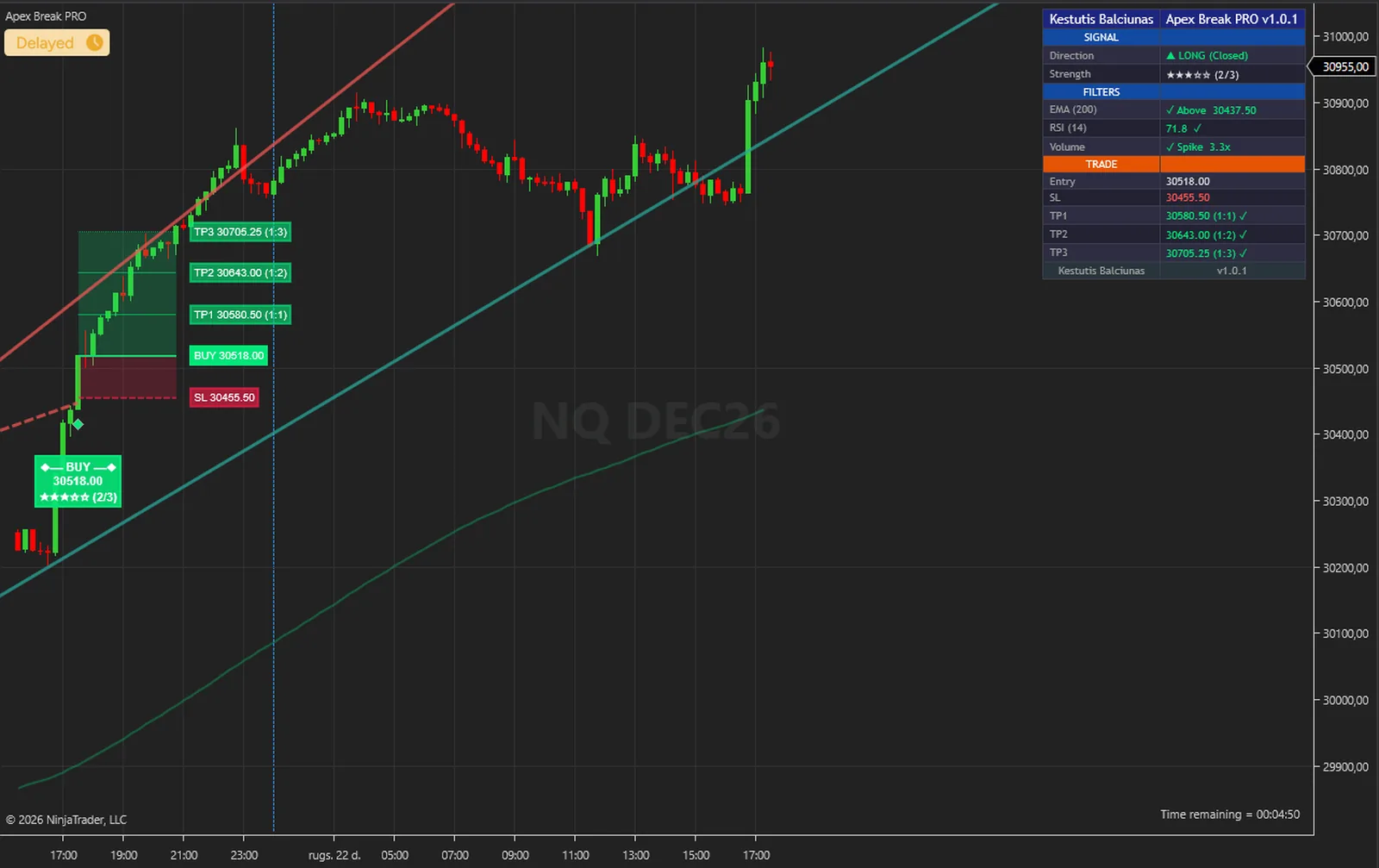

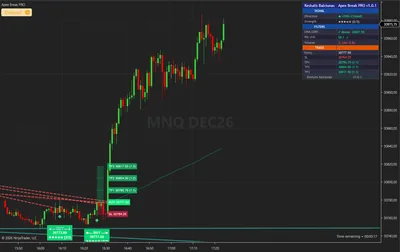

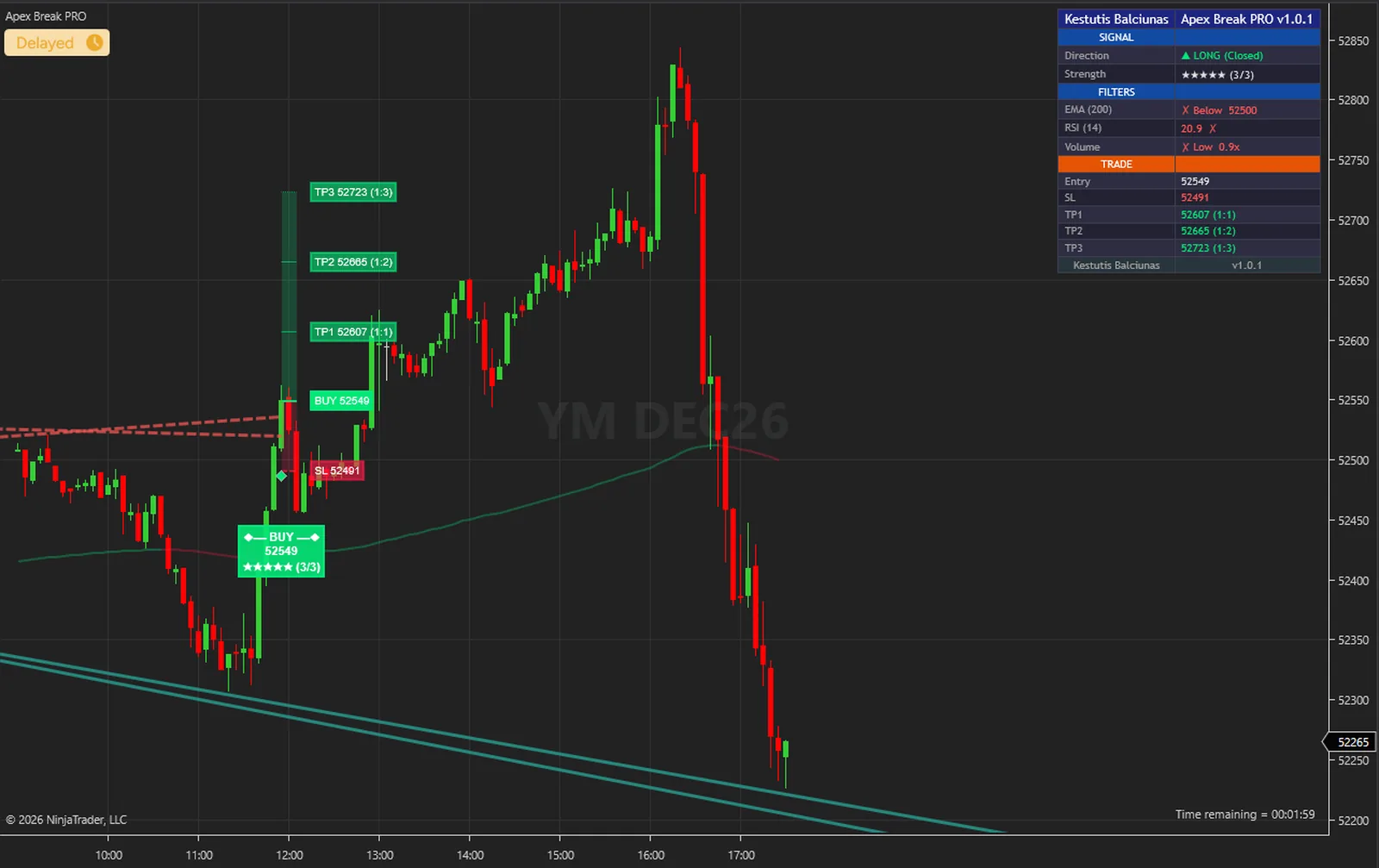

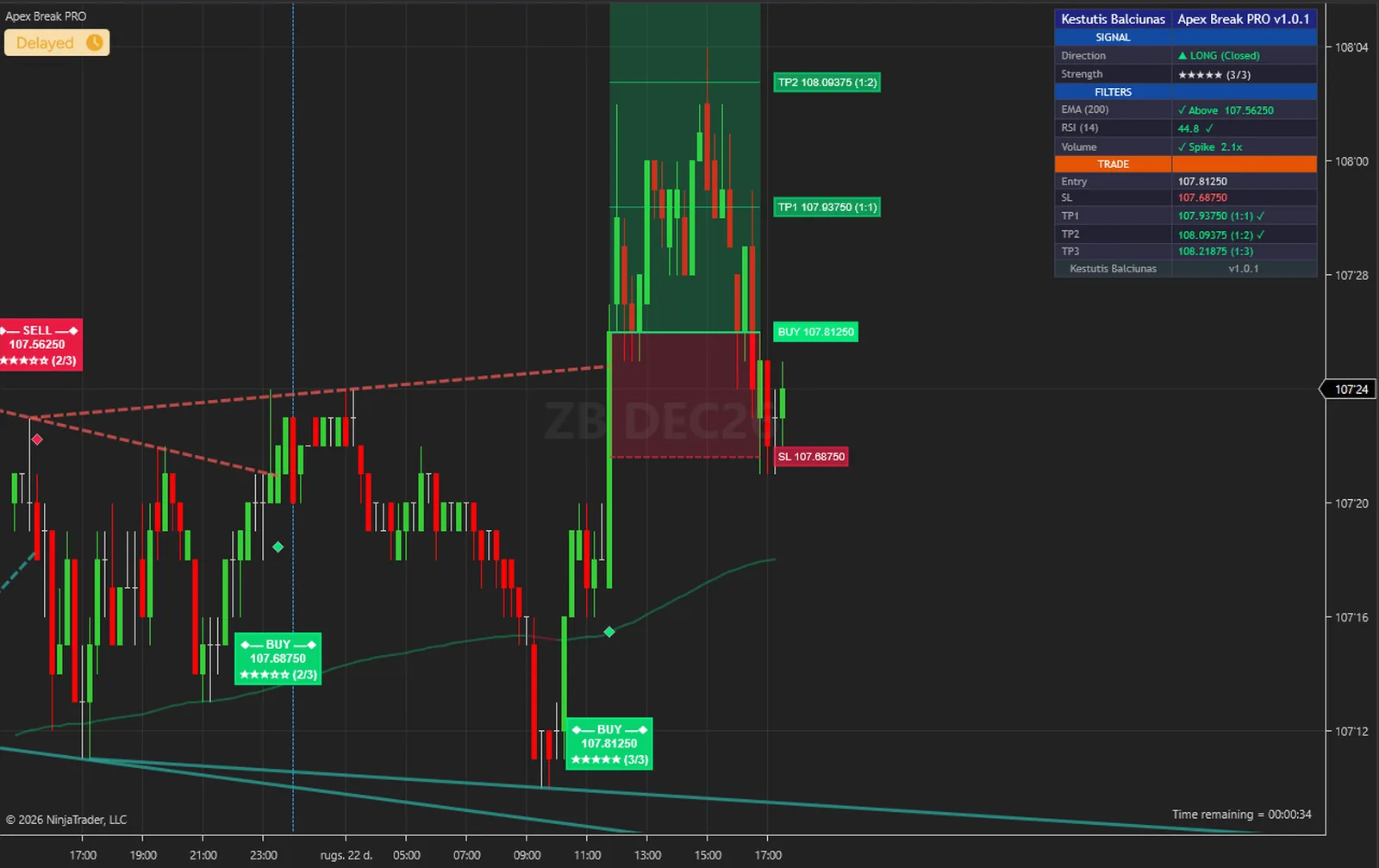

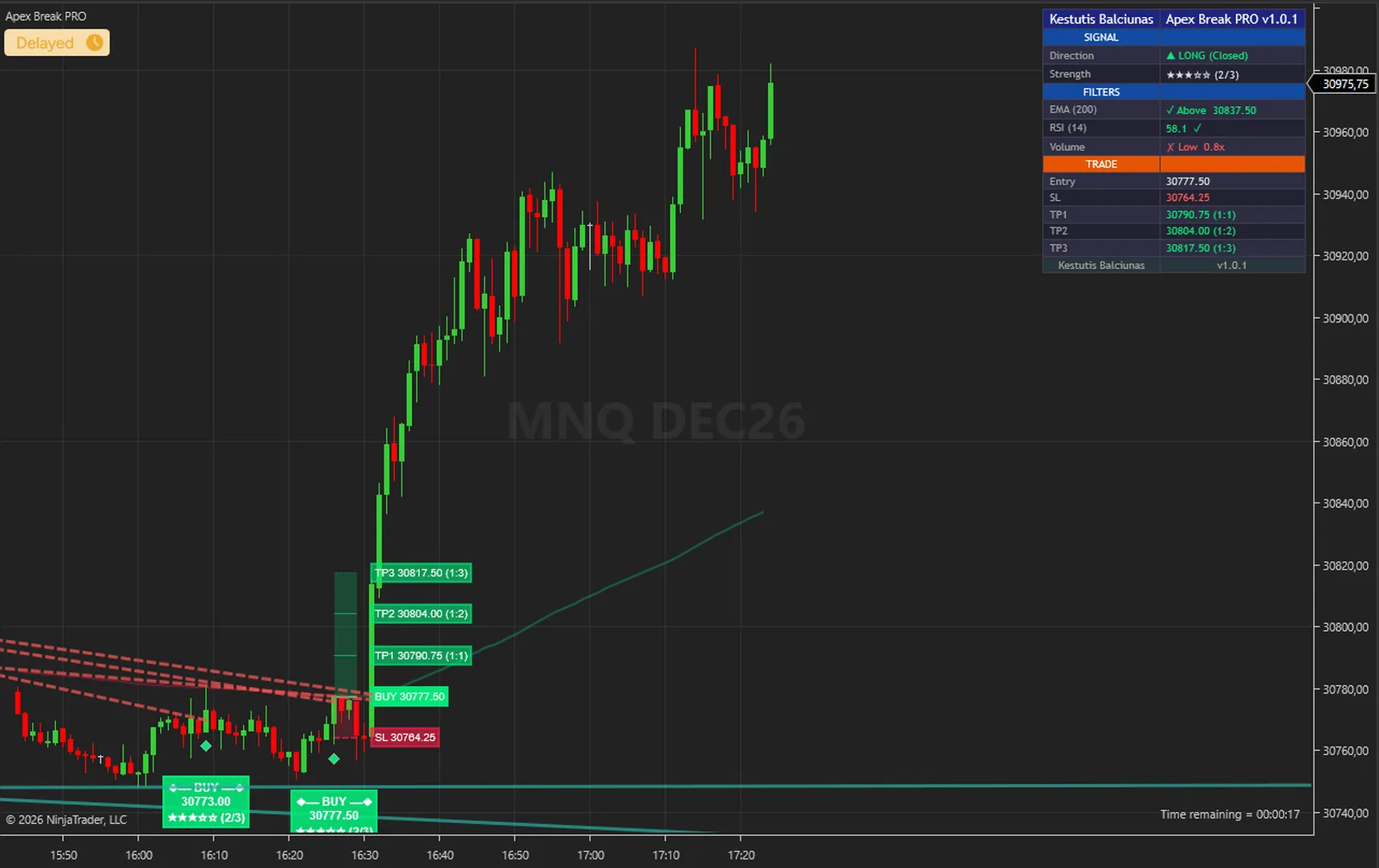

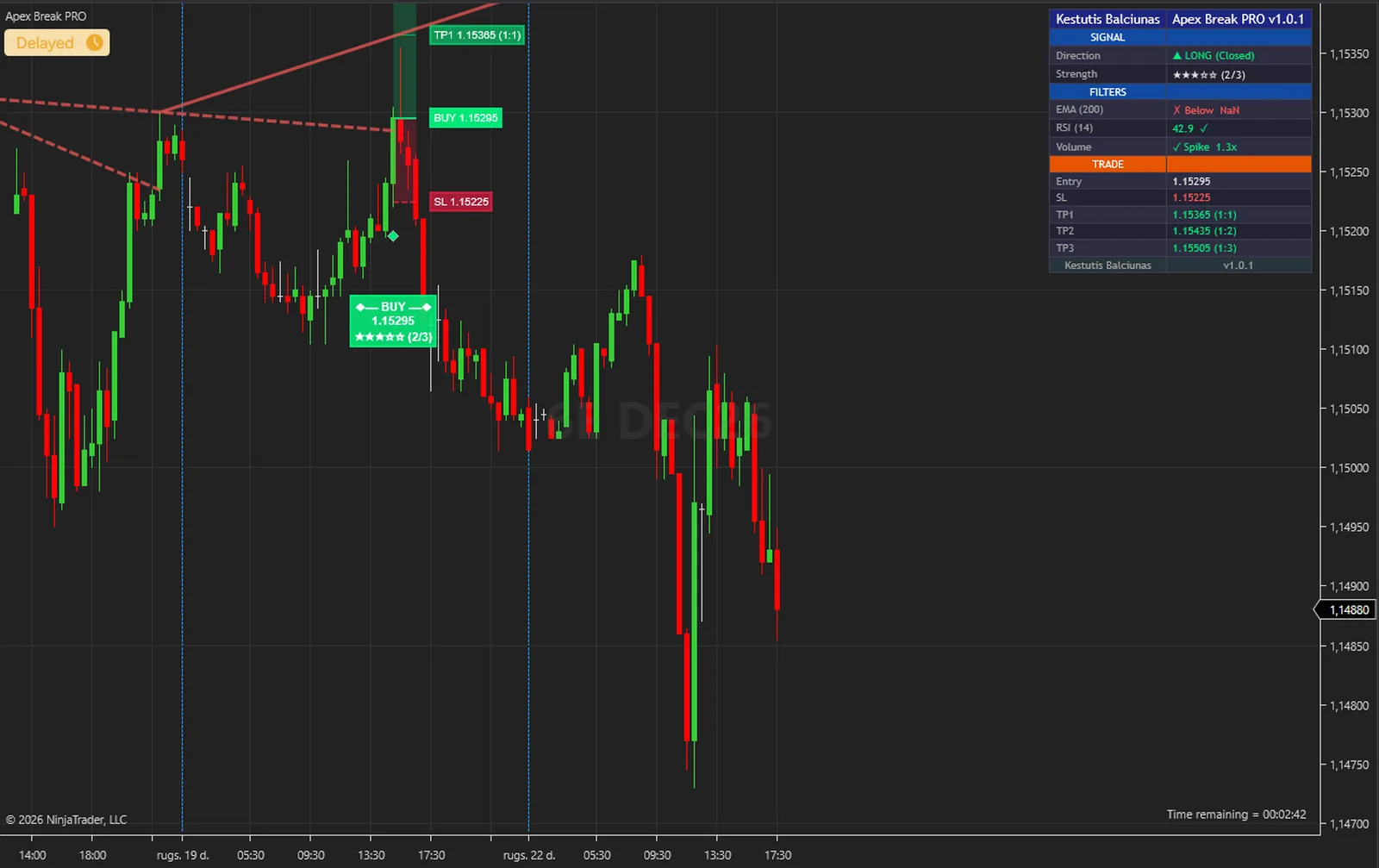

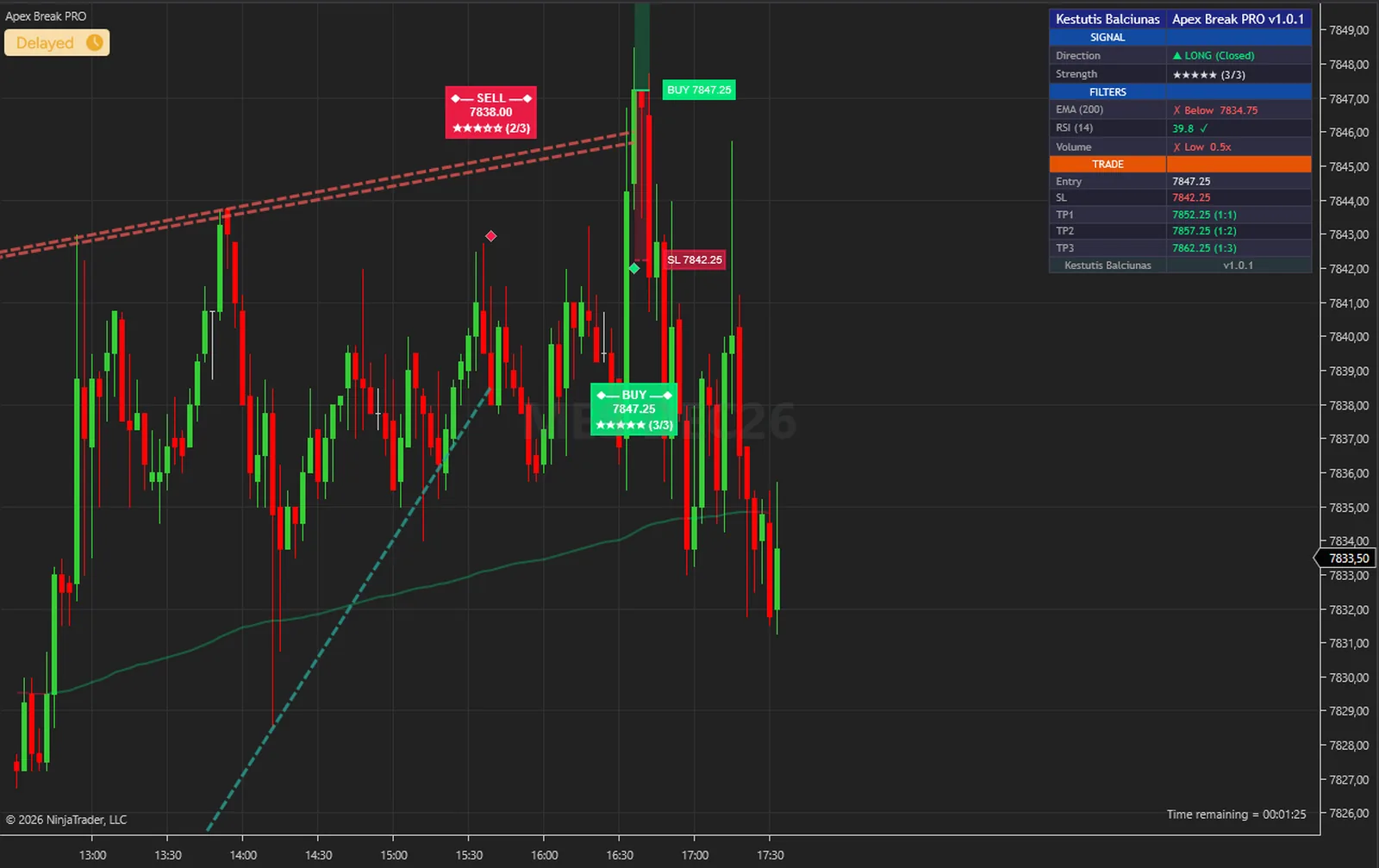

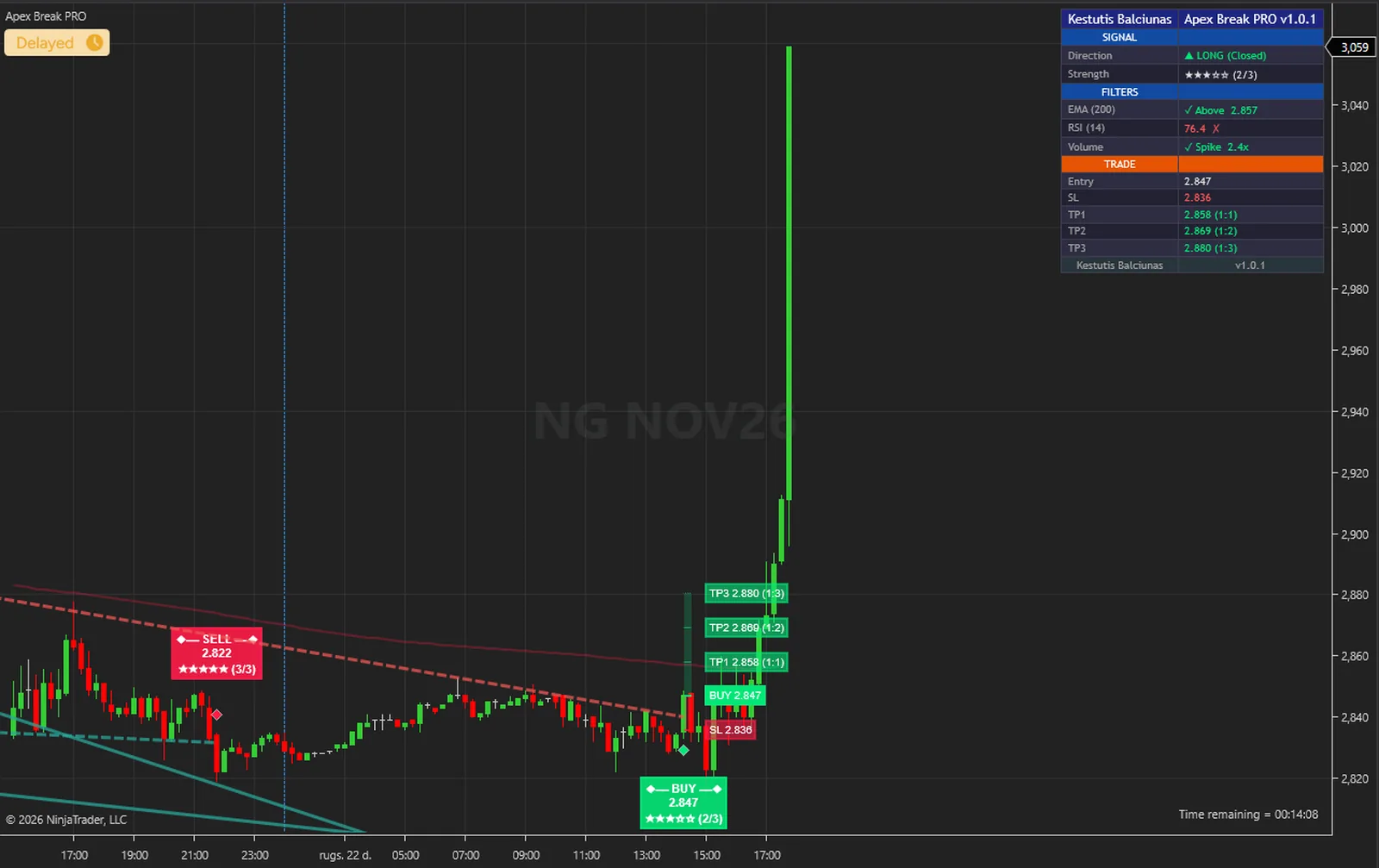

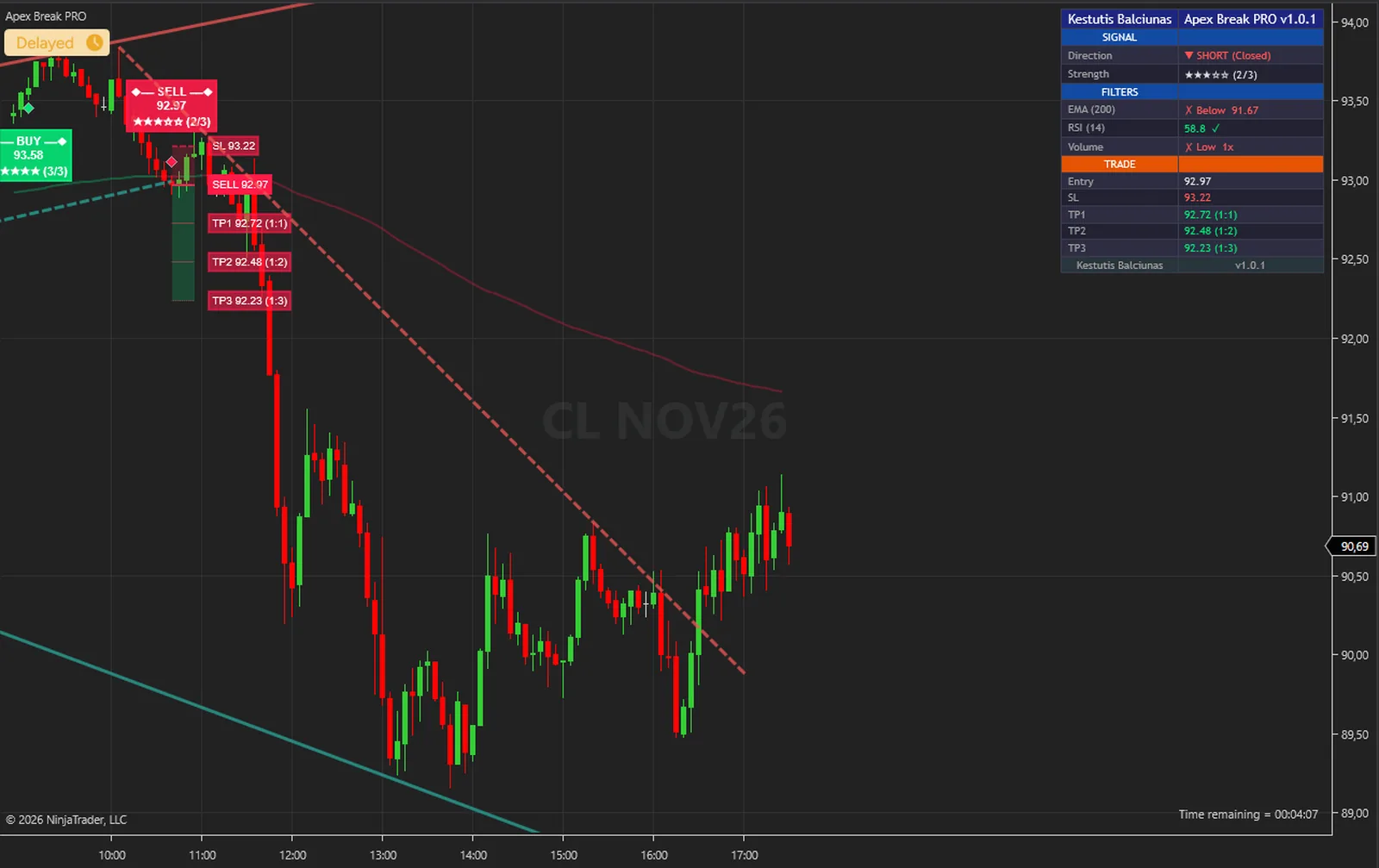

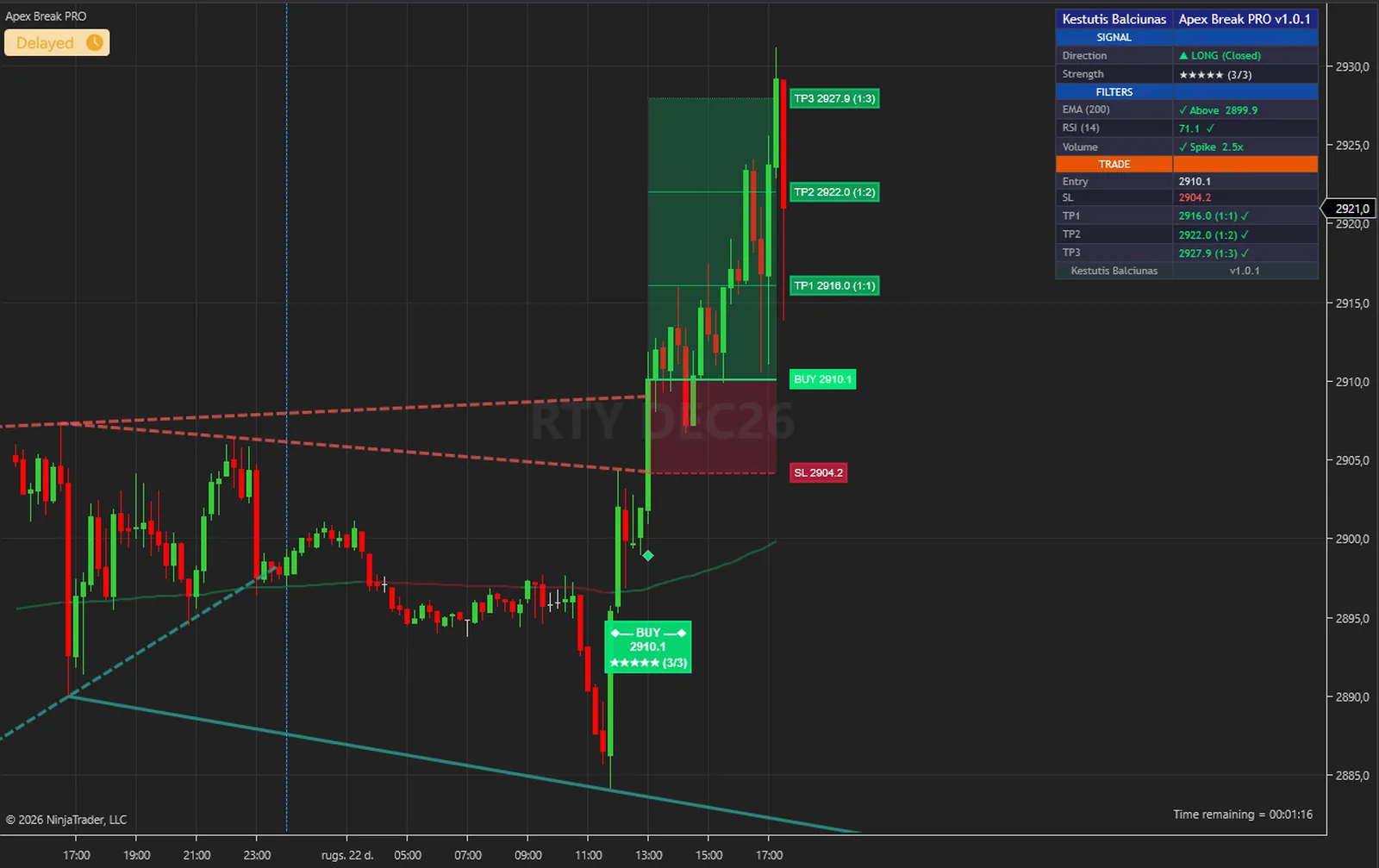

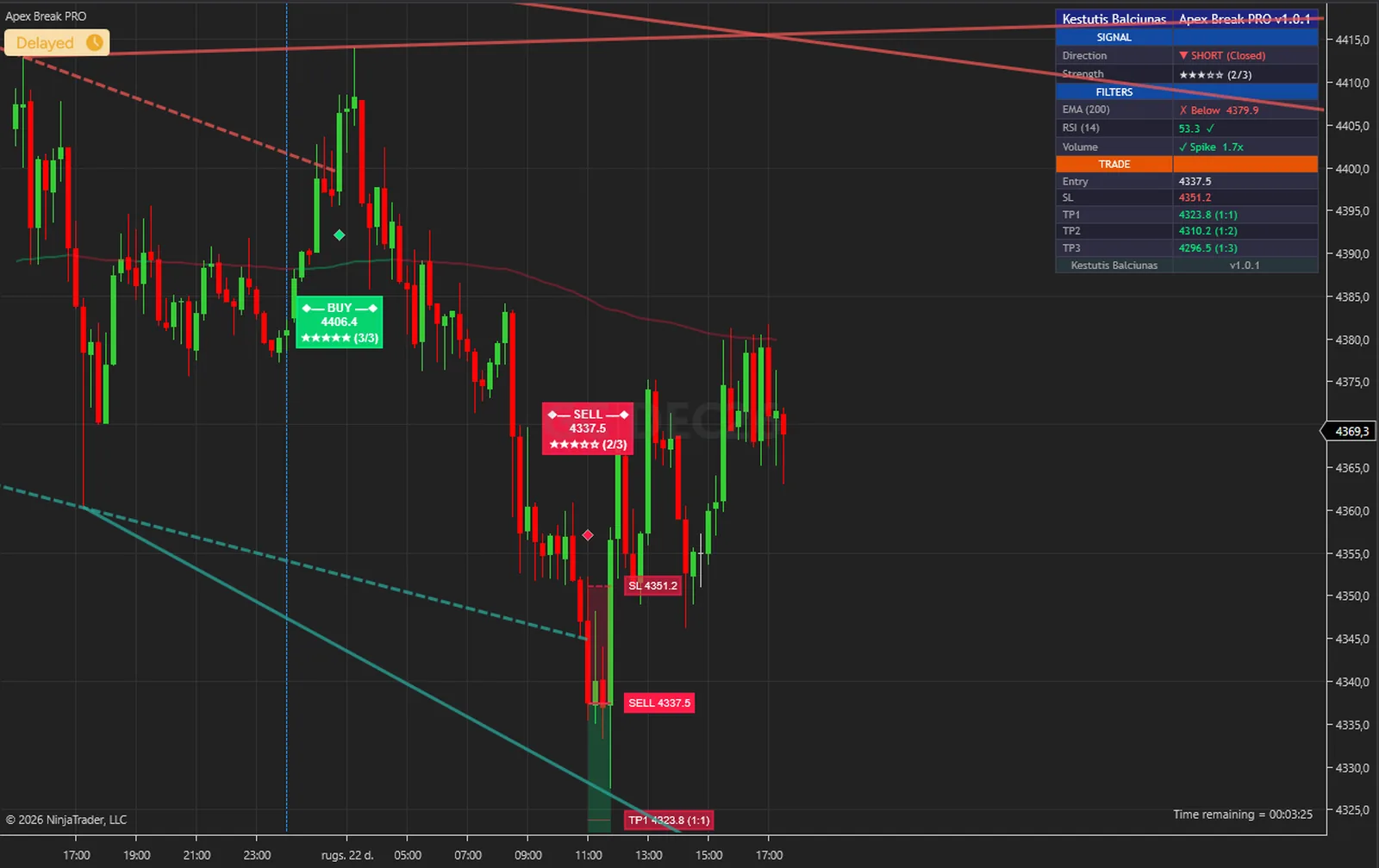

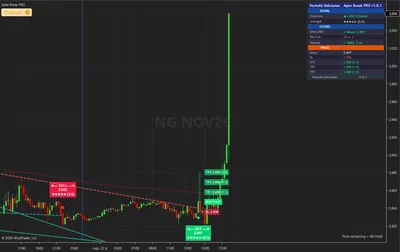

The calculations are not tied to an instrument. Twelve captures below, all taken on the same afternoon in NinjaTrader 8 on the free simulation feed: index, energy, metal, currency and rate futures, from 1-minute to 30-minute bars, with the defaults on every one.
On a futures chart the volume filter reads real contract volume against its own average, a better input for the same test than the tick volume forex feeds supply.
Five rules, applied in order on every closed bar. Nothing hidden and nothing exotic.
A high counts as a pivot only after the right-hand window of bars has closed below it, the left-hand window likewise. Twenty bars each way by default.
The new pivot high extends a resistance line through the previous pivot high; a pivot low does the same on the support side. Up to a set number of lines per side stay on the chart.
A bar must close beyond a live line by more than a multiple of the current ATR. Anything less is not a break, and a broken line turns dashed for reference.
Each enabled filter adds one point: EMA side, volume above its average by a multiple, RSI clear of the boundary, ADX above its threshold. The stars are the score scaled to five.
No signal of the same side within the cooldown window, and the score reaches your minimum. Only then does the label print, the levels draw and the alert fire.
| Trendlines by hand | Apex Break PRO | |
|---|---|---|
| Which pivots | The ones you noticed | Every confirmed pivot, by a fixed window |
| When the line appears | After you see the swing | On the bar that confirms the second pivot |
| What counts as a break | Any candle through the line | A close beyond it by an ATR margin |
| Signal strength | Your gut | Four filters, a star rating on the label |
| Stop and targets | You work them out | ATR stop and three targets, zones shaded |
| Old lines | Clutter, or deleted by hand | Dashed when broken, dropped when old |
| For your strategies | Nothing | TrendEma, Signal and TradeDirection series |
| Alerts | A price alert you set by hand | Nine events, with JSON bodies |
Two stages, stated separately because they measure different things. The engine that computes everything is the same C# code as the cTrader edition's engine, apart from its namespace line. That engine was replayed on 20,561 EURUSD M5 bars read from the TradingView chart model and compared with a probe copy of the original script: 46 internal series equal on every bar, both trendline collections equal across 1,439,270 field comparisons, and every break, signal, drawn line and label on the same bars. The report is on the cTrader page.
The NinjaTrader host is the second stage. With its diagnostic dump switched on it writes every committed bar with the values it drew, in exactly the columns the reference harness writes; those bars are replayed through the engine outside NinjaTrader, and the two files are diffed value by value. On 5,058 MNQ 1-minute bars all 119 series compared were equal on every bar, the trendline books included, slot by slot.
What that proves: the host feeds the engine exactly one closed bar per chart bar with the right open, high, low, close and volume, never double-feeds or skips a bar, and draws the lines and levels the engine produced. What it does not claim: there is no comparison against the original on futures bars, because TradingView's CME feed and NinjaTrader's feed do not carry the same bars, so no such comparison exists to make. And nothing here says anything about future performance.
The full method, with the columns compared, is in the user guide: User Guide (PDF) and Installation and Quick Start (PDF).
No subscription and no renewal. Pay once and the indicator stays licensed to your NinjaTrader account, updates included.
Apex Break PRONinjaTrader 8 indicator
$77one payment, lifetime licence
The licence is issued to your NinjaTrader account through NinjaTrader's Vendor Licensing, by hand, normally within a few hours and always within 24 hours of your form arriving. You get an email with the download link when it is done.
Because a licence cannot be handed back once it is on your account, a sale is final once the licence has been issued. If you paid and the licence has not been issued yet, email me and I will refund you in full. The user guide is public, so you can read exactly what the indicator does before you pay.
The full terms of sale and the privacy notice for buyers are one page each, in plain language.
Trading carries risk of loss. This is an analysis tool, not financial advice, and no indicator can promise a profit.
Signals, levels and alerts never repaint: they are fixed when the bar closes. A trendline is provisional on the forming bar until it closes, because a pivot's right-hand window includes the bar still forming; that is true of the original as well, and it is stated here rather than hidden.
NinjaTrader 8.1 Desktop for Windows; the build is tested on 8.1.8.2. Any data connection that delivers bars works, including the free simulation connection. No Order Flow+ features, market depth or tick history are needed.
No. NinjaTrader 8 is free to download and use for charting and simulation, with free real-time futures data for the simulator. A live account with a broker of your choice is a separate step that this indicator does not need. NinjaTrader is the platform it runs inside, not a broker.
No. The licence is tied to your NinjaTrader account login through NinjaTrader's Vendor Licensing, not to a PC. Log in on any installation and the indicator runs; a new PC needs no transfer.
I issue it by hand in the NinjaTrader Vendor Dashboard. It is normally done within a few hours and always within 24 hours of your form arriving, including weekends.
No. It is one payment of 77 USD for a lifetime licence on one NinjaTrader account, with future updates included.
With the defaults the EMA needs 200 bars and every trendline needs a pair of pivots, each confirmed 20 bars after the fact. A few days of 5-minute bars is plenty; set Days to load in the Data Series dialog accordingly.
Yes. The indicator exposes three series to NinjaScript strategies and the Market Analyzer: TrendEma, Signal (+1 on a BUY bar, -1 on a SELL bar, 0 otherwise) and TradeDirection (+1 while a long trade is tracked, -1 for a short, 0 when flat).
Once the licence has been issued the sale is final, because a licence on your account cannot be handed back. That is why the user guide is public: read it first. If you paid and the licence has not been issued yet, email me and I will refund you in full.
Yes. Email me from the address you bought with and I will move the licence to your new account login.
Yes. The same indicator is on the MQL5 Market for MetaTrader 4 and 5, on the cTrader Store, and as an invite-only script on TradingView. Each platform has its own licence; this page is the NinjaTrader 8 edition.
No indicator can promise that, and this one does not. It gives you trendlines drawn by a rule, breaks rated by how many filters agreed, and a stop and targets to plan around. What you do with that, and how you size positions, decides the outcome.
